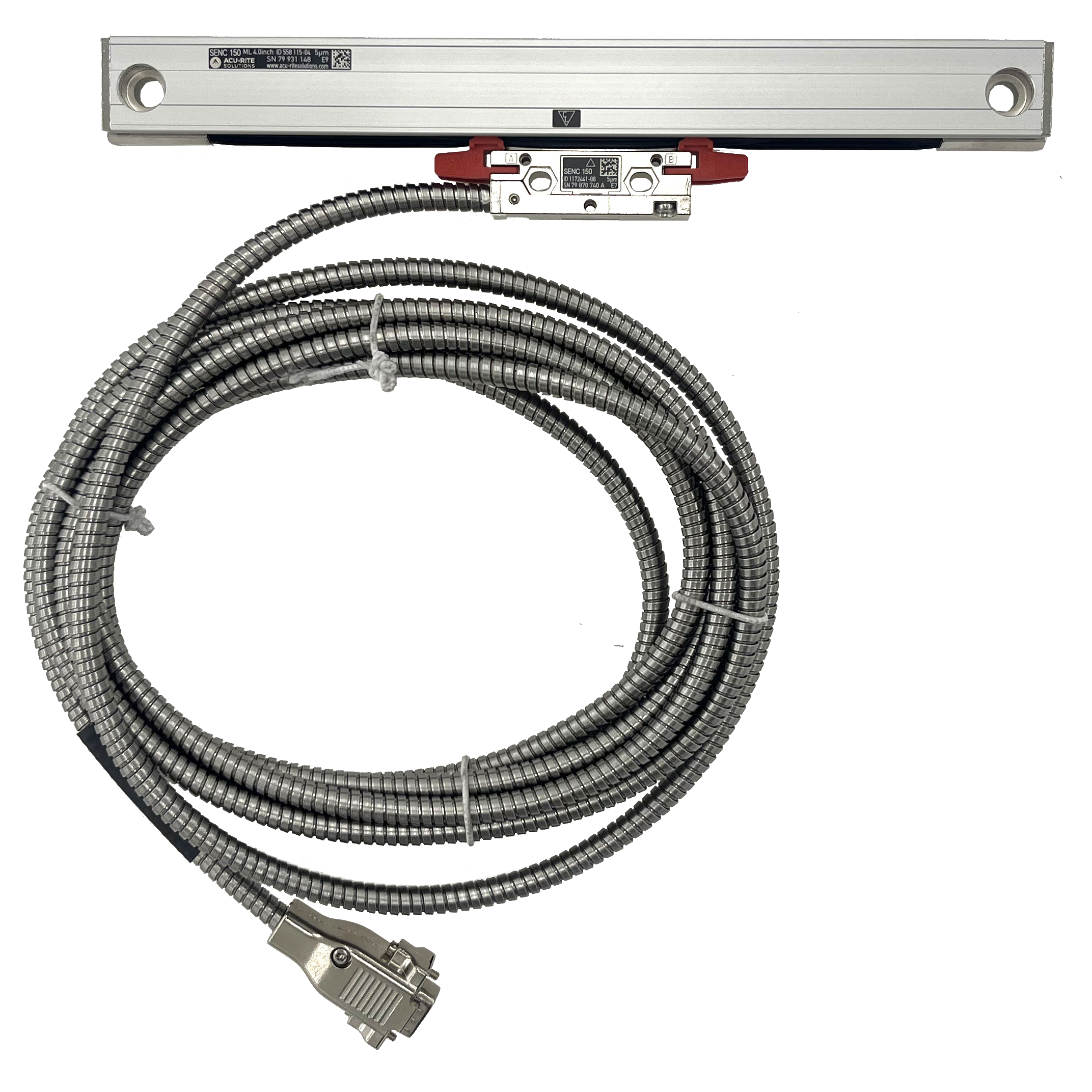

SENC 150 5μm 4.0″ Linear Encoder

Designed for a wide range of manual machine tools, the SENC 150 linear encoder delivers advanced precision, exceptional durability, and long‑term reliability for nearly any machining environment. Its compact yet rugged glass‑scale design reduces backlash, improves scale travel life, and ensures consistently accurate feedback for milling, turning, grinding, EDMs, and inspection equipment.

Whether you’re upgrading a legacy machine or enhancing a current system, the SENC 150 offers dependable performance backed by HEIDENHAIN technology. Built to withstand harsh shop conditions and supported from North America, it’s the ideal balance of accuracy, strength, and ease of installation.

Key features include:

• 5 μm resolution
• 4″ measuring length
• Reader head with 13′ (4m) armor cable
• Position‑Trac™ for quick zero‑reset after power loss
• High contamination resistance with integrated scanning sensor
• Compact, robust precision glass scale construction
• IP53 protection (IP64 with air purge)
• Made in an ISO‑certified facility and supported in North America
• Ideal for retrofitting 100+ machine makes and models

Read more about the SENC 150 here or visit acu‑ritesolutions.com for full specifications.
